Description

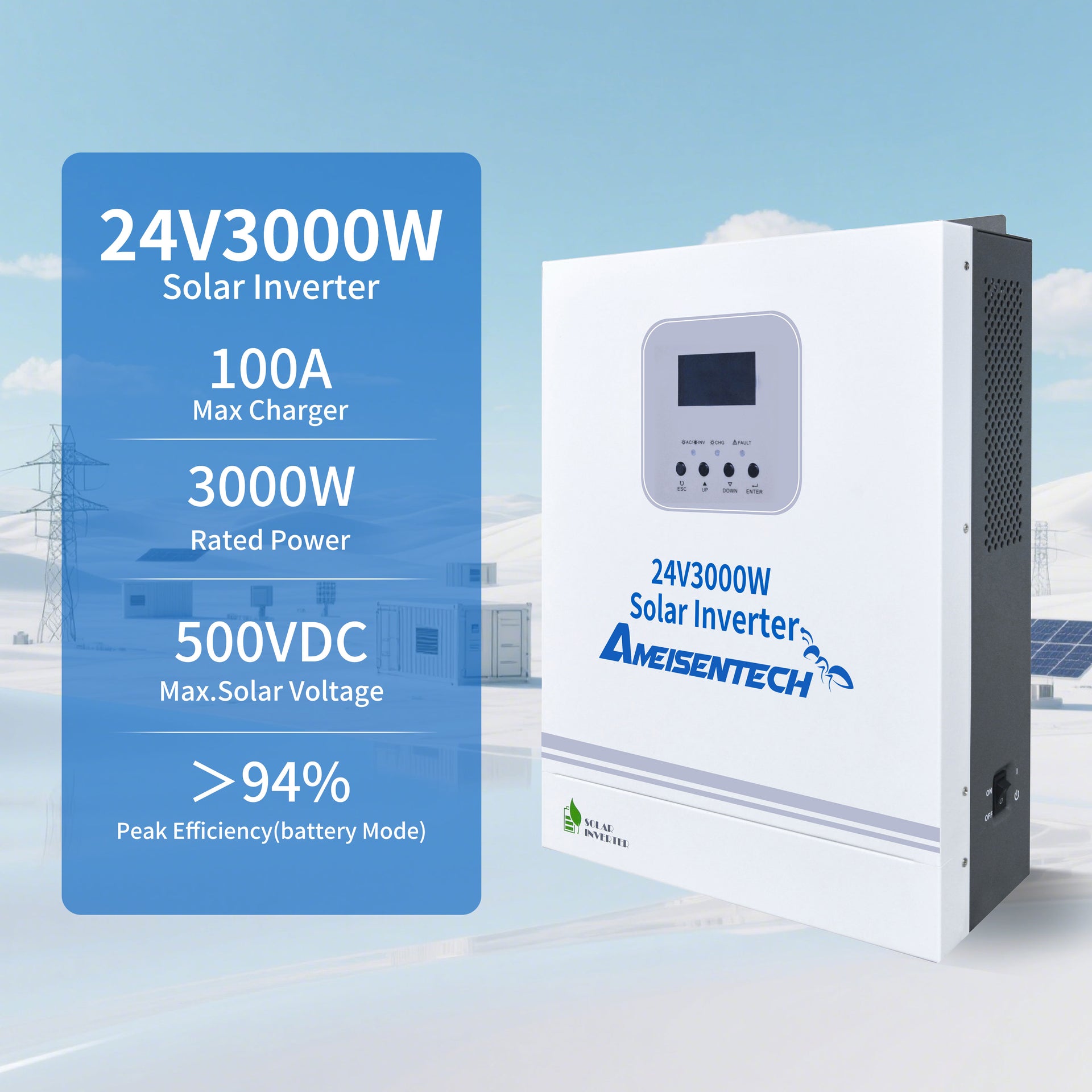

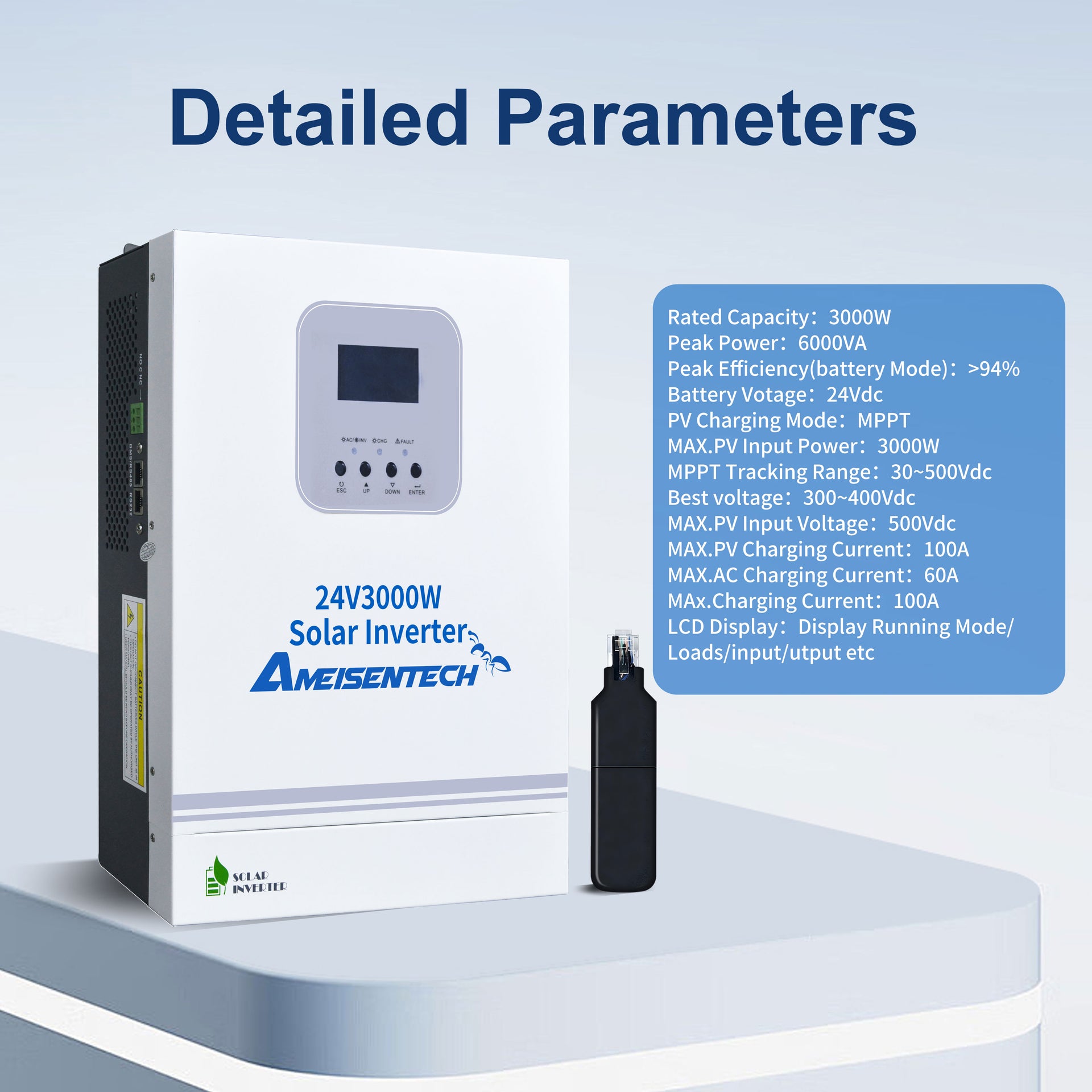

Inverter Specifications
| INVERTER OUTPUT | |
|---|---|

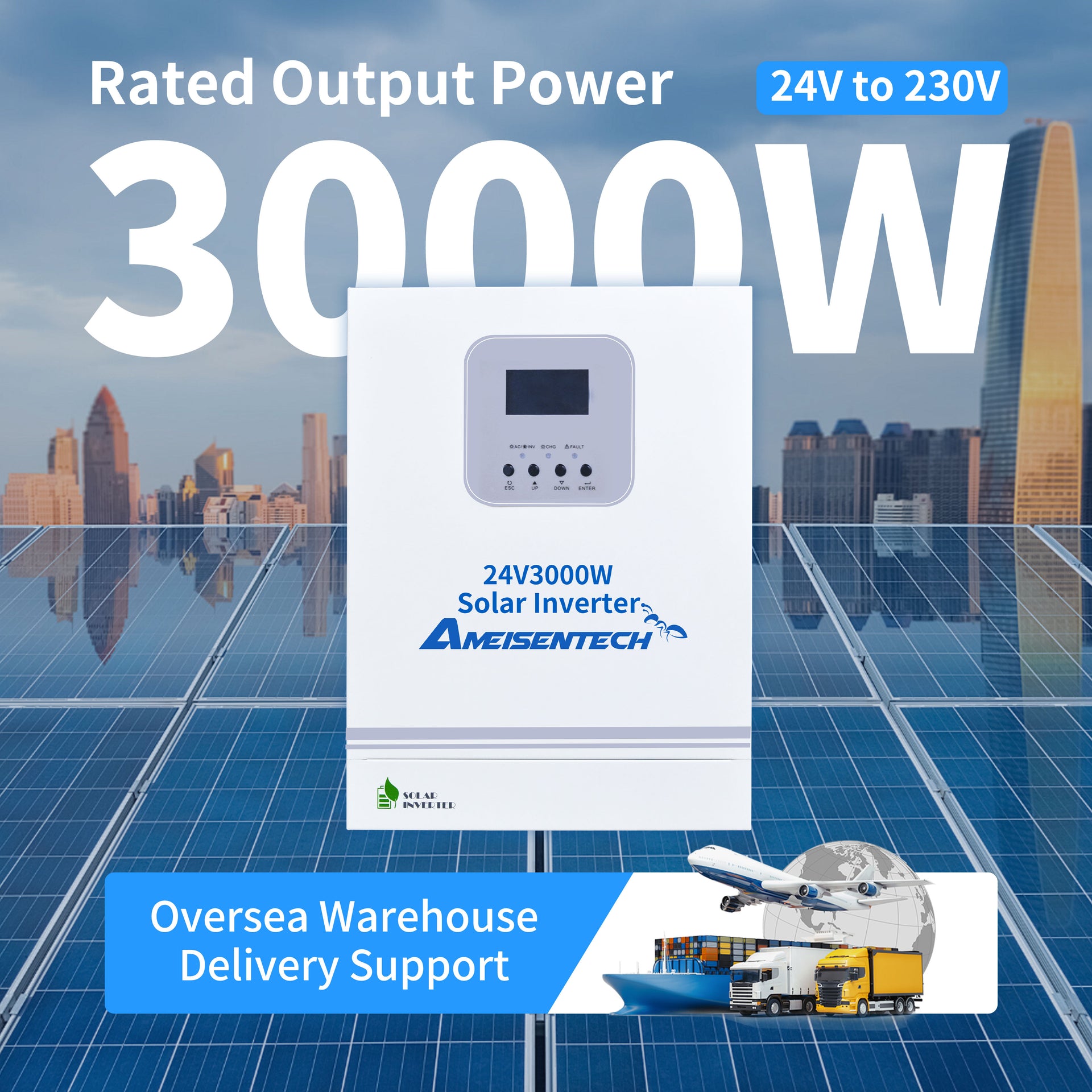

| Rated Output Power | 3,000 W |
| Max Peak Power | 6,000 VA |
| Rated Output Voltage | 240 VAC (L/N/PE single-phase) |
| Load Capacity of Motors | 2 HP |
| Rated AC Frequency | 50/60 Hz |

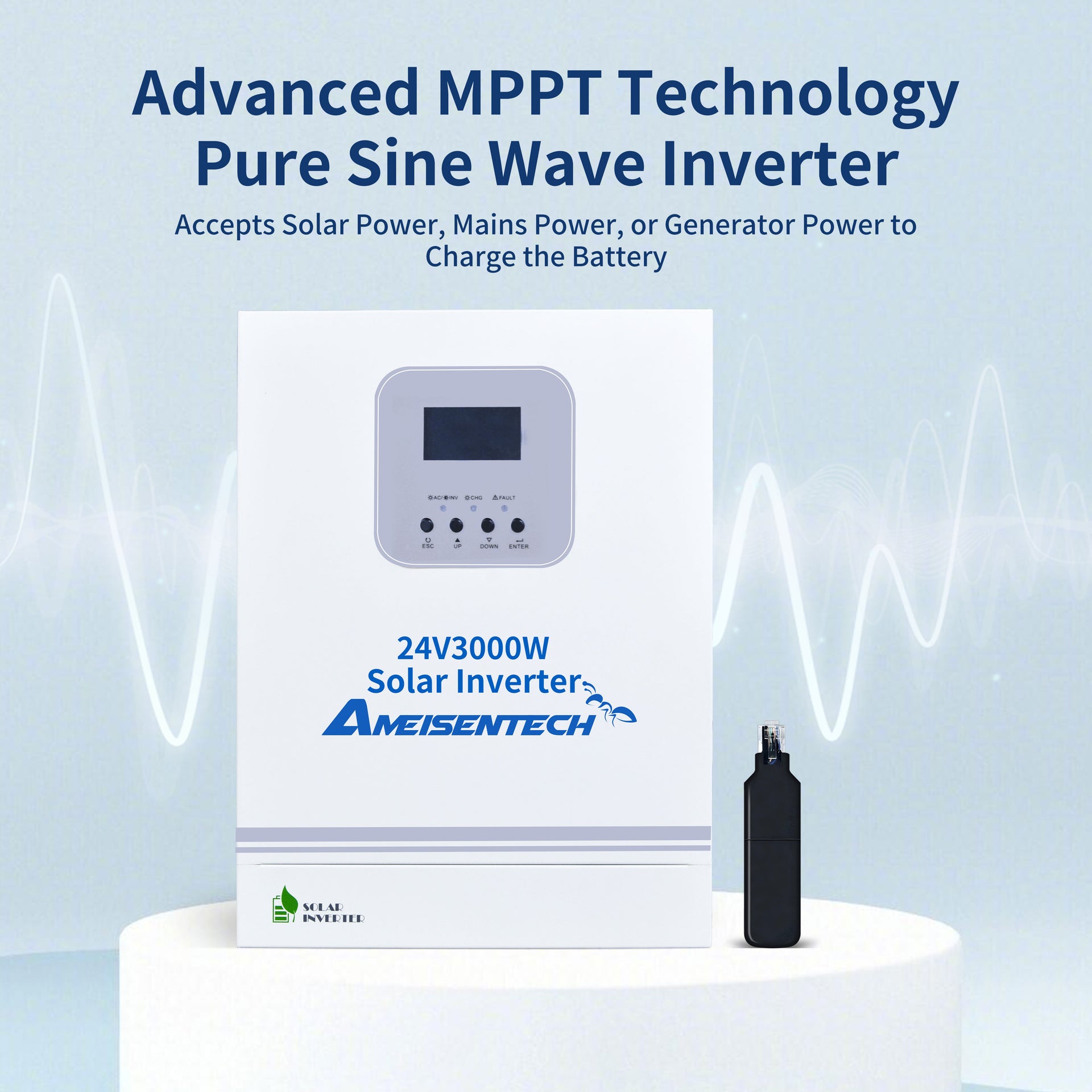

| Waveform | Pure sine wave |
| Switch Time | 10 ms |
| BATTERY | |

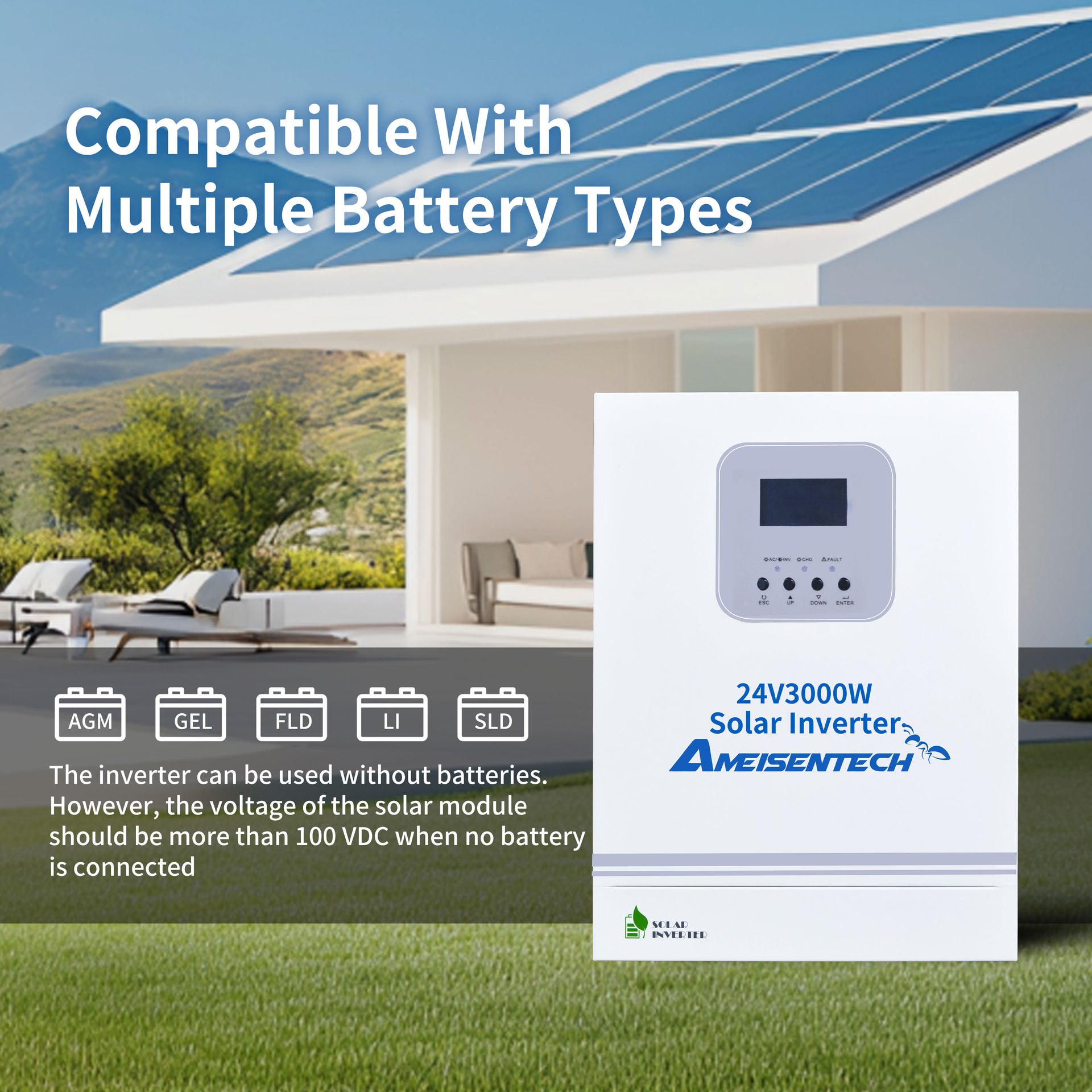

| Battery Type | Li-ion / Lead-acid / User-defined |
| Rated Battery Voltage | 24 VDC |
| Voltage Range | 20~33 VDC |
| Max MPPT Charging Current | 60 A |
| Max Grid/Generator Charging Current | 40 A |
| Max Hybrid Charging Current | 100 A |
| PV INPUT | |
| Num. of MPPT | 1 |
| Max PV array power | 1600 W |
| Max input current | 40 A |
| Max PV Voltage | 108 VDC |
| MPPT Voltage Range | 90~140 VDC |
| GRID / GENERATOR INPUT | |
| Input Voltage Range | 90~140 VDC |
| Input Frequency Range | 50/60 Hz |
| Bypass Overload Current | 40 A |
| EFFICIENCY | |
| MPPT Tracking Efficiency | 99.9% |
| Max. Battery Inverter Efficiency | 92% |
| GENERAL | |
| Dimensions | 16.77 x 12.68 x 4.96 in / 378 x 280 x 103 mm |
| Weight | 6.8 lb / 14.99 kg |
| Protection Degree | IP20, indoor only |
| Operating Temperature Range | 14~131°F / -10~55°C |
| Noise | ≤60dB |

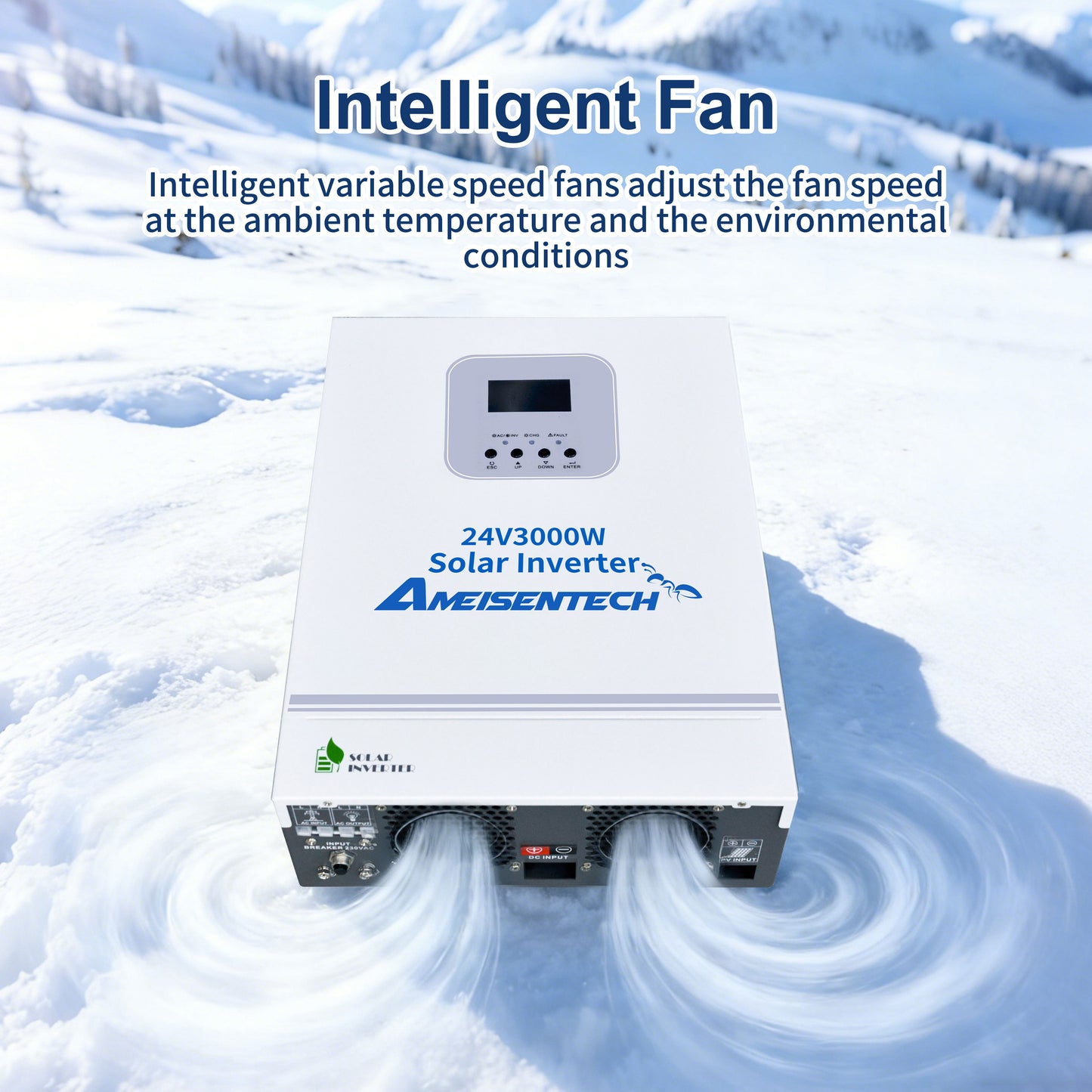

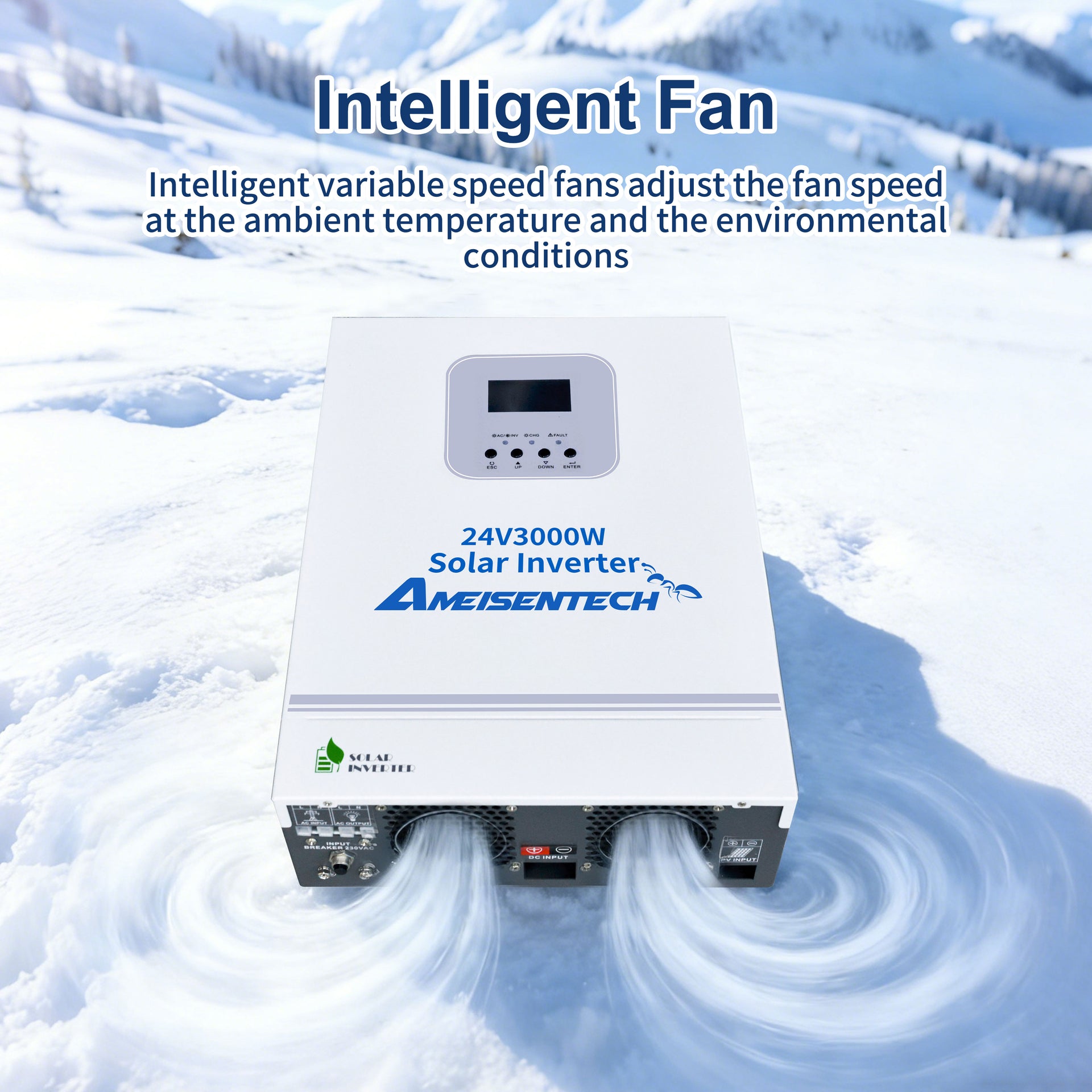

| Cooling Method | Forced Air w/ Adjustable Air Speed |
| Warranty | 18 Months |
| CERTIFICATION | |
| Safety | CE (IEC62109-1/2) / CETL(UL 1741/ CSA C22.2 NO.107.1). |
| EMC | EN61000, C2 |
| RoHS | Yes |
